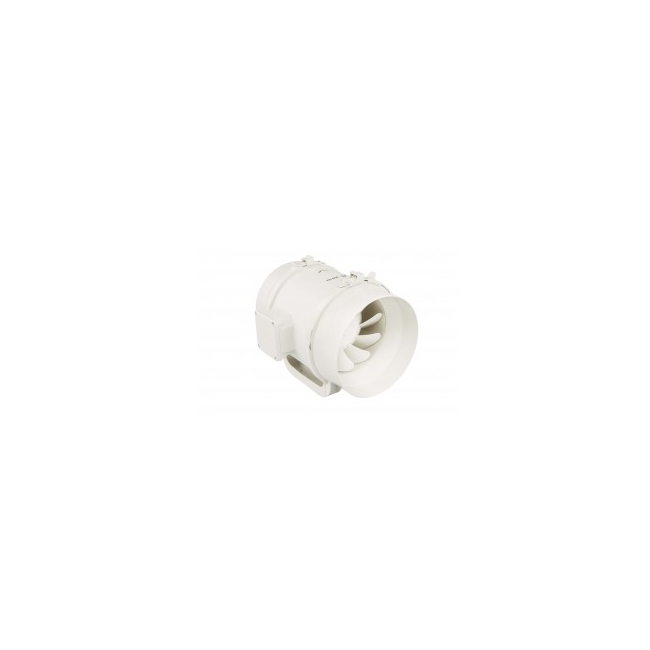

S&P TD-2000/315 3V – TD-MIXVENT In-line Mixed Flow Duct Fan

Key Features

• Range of low-profile in-line mixed flow duct fans manufactured in tough reinforced plastic (from 160 to 800 models) or with metal casing steel finished in a tough epoxy-polyester paint coating (from 1000 to 6000 models).

• The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting. Motor Models 160-2000: Class B, with ball bearings and safety thermal overload protection.

• IP44. Direct 2- or 3-speed connection and also suitable for voltage speed control.

• Electrical supply:

• Single-phase 230V-50Hz (models from 160 to 350)

• Single-phase 230V-50/60 Hz (models from 500 to 2000)

• Models 4000 and 6000: Class F, with ball bearings and safety thermal overload protection.

• IP54. Suitable for voltage speed control.

• Electrical supply:

• Single-phase 230V-50/60Hz.

• Three-phase 400V-50/60 Hz (model 4000) or 400V-50 Hz (model 6000)
